Starway Vehicle manufacture exceptionally durable products with superior strength to meet the demanding transportation requirements. By utilizing high-strength steel and renowned brand components, we ensure maximum capacity and reliability.

Advantages:

1. The main beam is crafted from HG high-strength steel, offering excellent load-bearing capacity.
2. The side beams are constructed with “H” steel, designed for durability to prevent deformation over time.

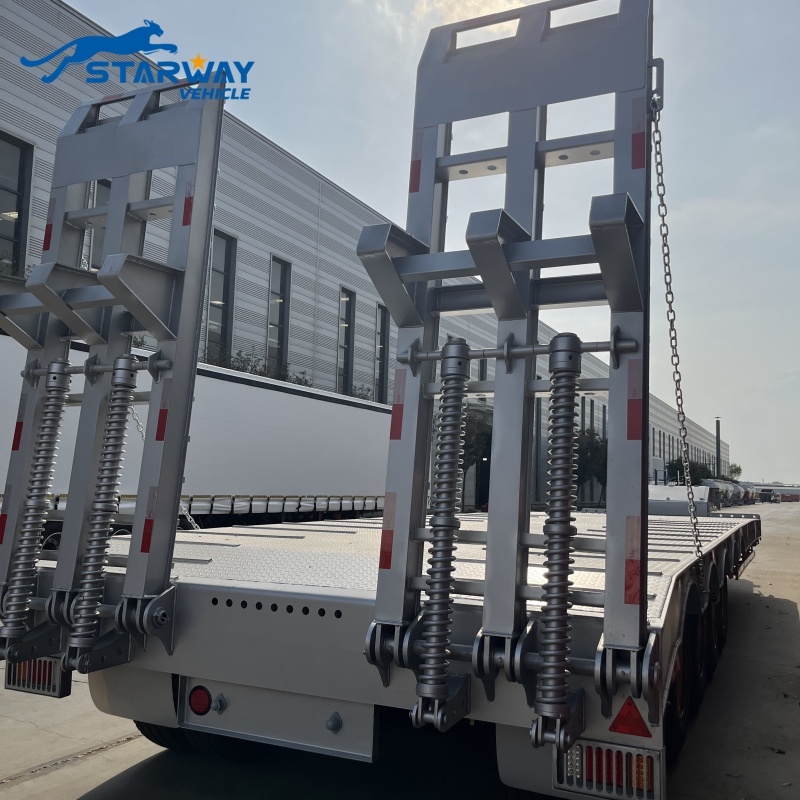

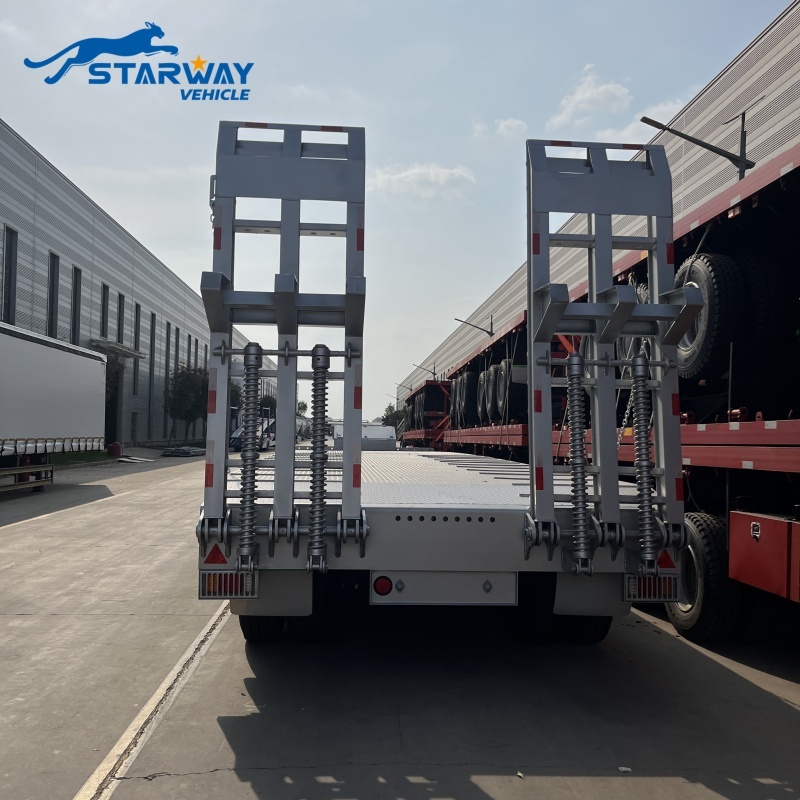

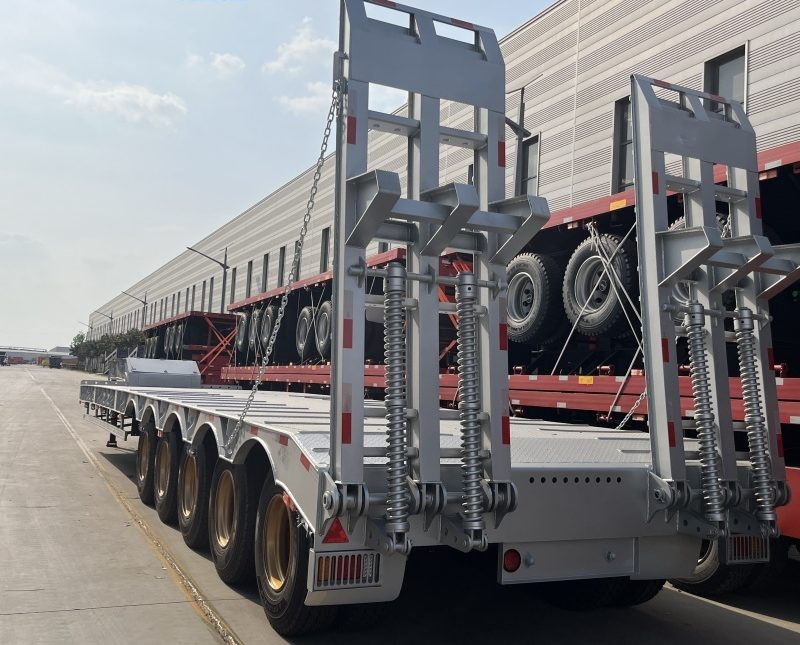

3. The loading ramps are made from high-strength steel, ensuring superior load capacity and resistance to deformation even when carrying heavy equipment.
4. The polyurethane coating provides a long-lasting finish, protecting the vehicle from rust and extending its service life.
5. We use world-renowned spare parts to guarantee exceptional quality while helping reduce maintenance costs.

Specification :

Size:11000-18000×2500-3200×2980mm (According to customer demand , Standard Length is 13500mm )
loading capacity 13 ton axle * 3 / 40-60 ton More configuration requirement please contact supplier
16 ton axle *3 / 60-80 ton
20 ton axle *3 / 80-120 ton
25 ton axle *3 / 120-150 ton
Manufacturer Shandong Starway machinery co., ltd.
Axle specs. 10/12/13/14/16/20/25T , FUWA , Starway or BPW Brand
Suspension mechanical or air supension (American or German)
Rim 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
King Pin JOST 2″ or 3.5″ traction pin
Support legs JOST, FUWA or YAHUA brand 28T
Wheelbase 7180/6680/6260+1310+1310mm,Or other
Steel Spring 8/8/8, 10/10/10, 12/12/12 pieces per axle
Ladder Manual or hydraulic automatic

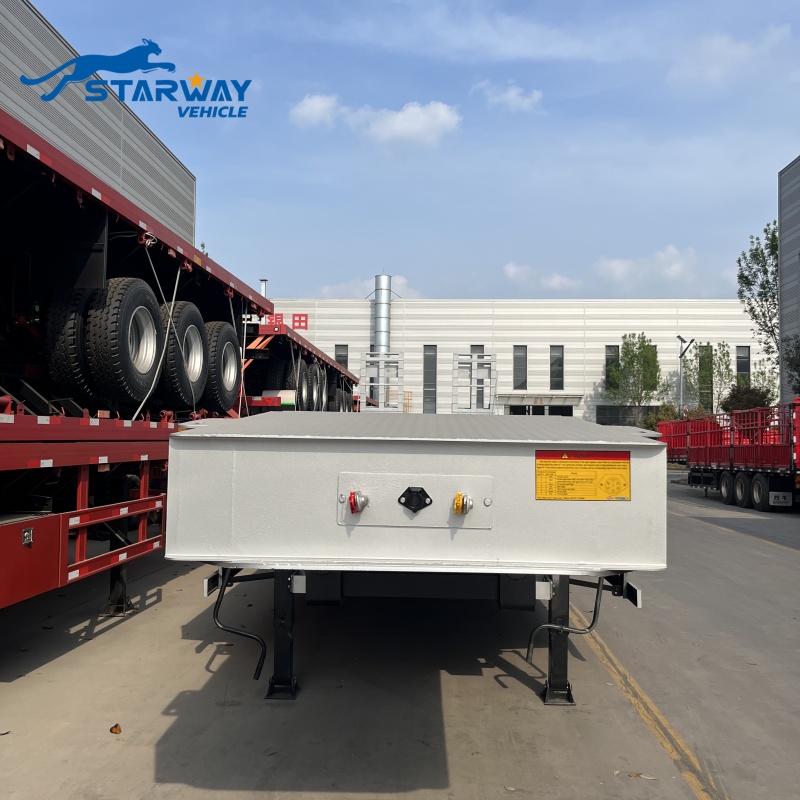

Electrical system 24V,7 pin socket,One set 7-core standard Cable
Tire 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 (Other Size / Single Super Tire Contact with Supplier)
Number of Tire 8 or 12 or 16 pieces
Spare Tire Carriers 2 pieces
The material of Main beam Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.
Side beam 16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate 5/6/7 mm Diamond Plate
Brake Kemi Brand of China
Brake Chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
ABS system optional
Light Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box 1 sets(waterproof type)
Spare tire carrier 1 sets(Patent type)
Color and logo According to customer demand

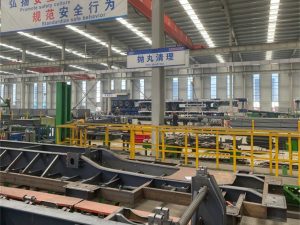

Painting Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
Packing Polish with wax before shipping
