3 Axles 40- 80T Lowbed Trailer

Tri-axle Lowbed Trailer with Side Extensions

At Starway Vehicle, we specialize in delivering custom-built lowbed truck trailers with side extensions—engineered to handle oversized, overweight, and over-width equipment with safety and ease.

Our lowbed trailers are designed with extended side decks, each side increasing the platform width by 20 to 30 cm, providing extra surface area for securing wide cargo like wind turbine blades, mining equipment, or oversized steel structures. This extended design helps improve load stability while minimizing road transport risks.

Made from premium carbon steel and constructed using robotic welding and advanced surface treatment, our trailers deliver maximum structural strength and long-term durability. Available in 3-axle and 4-axle configurations, the load capacity can be tailored from 40 tons to 120 tons, meeting different hauling demands across construction, logistics, and energy sectors.

We understand that downtime is costly. That’s why our after-sales service is always close by, offering:

  • Fast-response technical support

  • Local spare parts dispatch

  • Maintenance manuals and video guidance

  • Optional on-site training

When you choose Starway, you don’t just get a trailer—you get a long-term partner committed to your productivity, safety, and operational success.

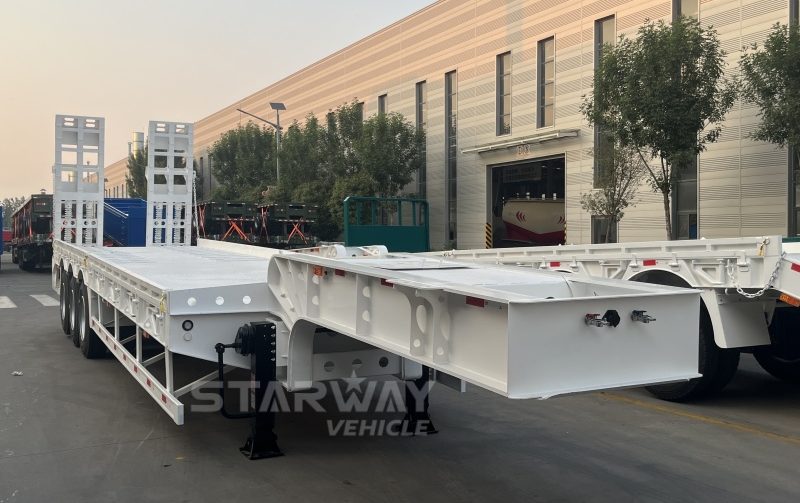

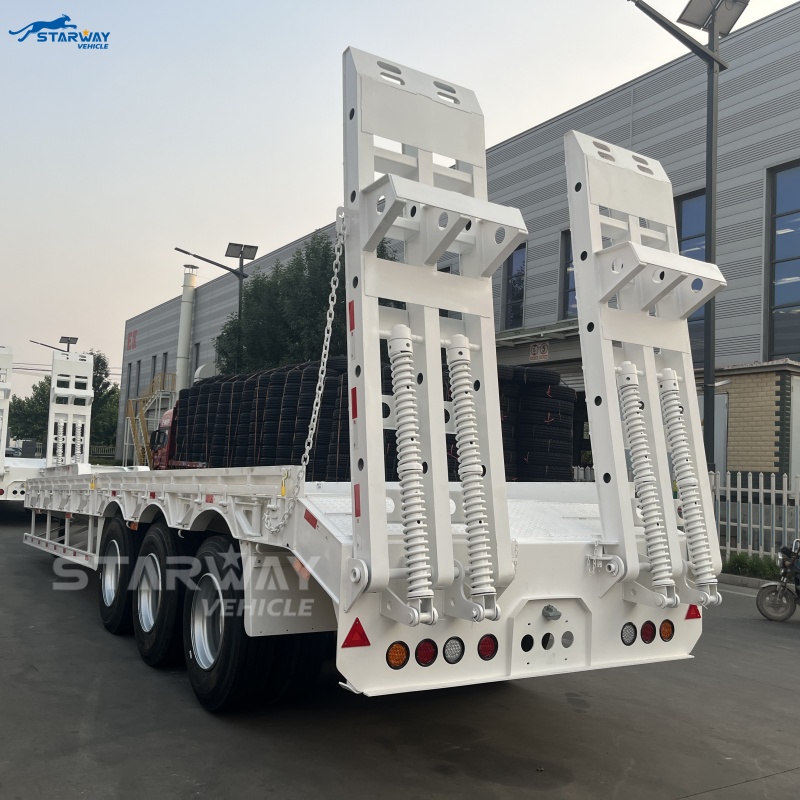

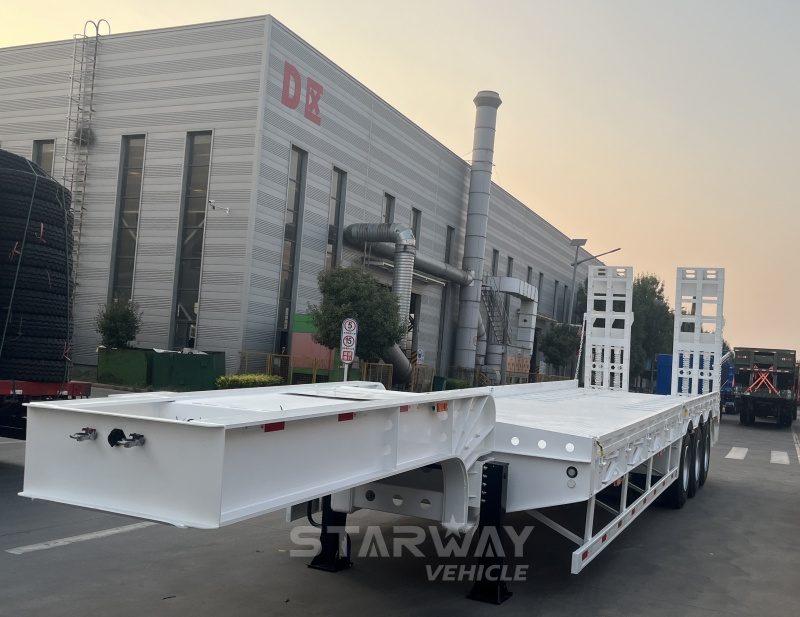

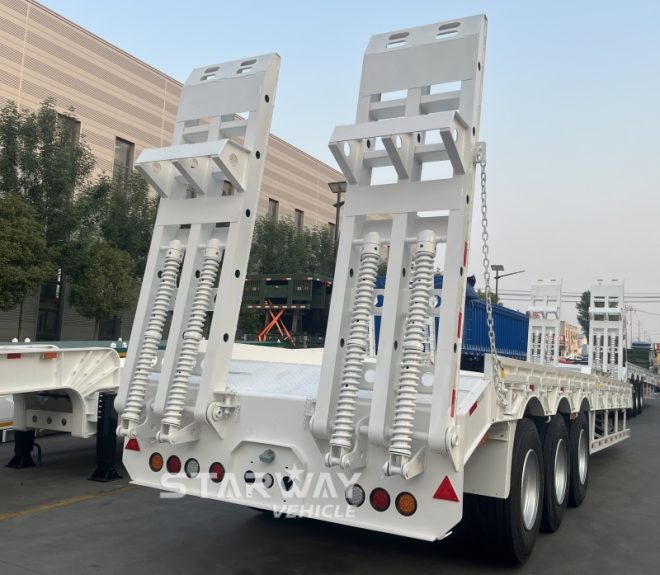

Starway Vehicle Tri-axle Lowbed Trailer with Side Extensions

Starway Vehicle Tri-axle Lowbed Trailer with Side Extensions

Starway 3 axles 60 tons Lowboy Trailer
Axle 3*16 tons (BPW/FUWA/Starway brand optional)
Tire 12R22.5 12units
Floor plate 5mm,checkered plate
Main Beam The height of the beam is 500 mm, upper plate is 20mm,down plate is 22mm, middle plate is 16mm.
Suspension Mechanical suspension
Kingpin 90#(3.5inch) or 50#(2inch)
Color Customer’s Requirements
Welding standard: All welding are to be done by qualified welder per applicable national standard
Landing gear 28Ton standard 2 speeds
Brake air chamber Fourdouble chamber + 2single
Electrical system Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)(within

Tail lamp with turn signal, brake light & reflector, side lamp etc.(within

One set 6-core standard Cable.(within

Painting Complete Chassis sand blasting to clean rust, 1 coat of ,2 coats of final paintAcrylic polyurethane paint.
Toolbox 1 set standard tool box
Spare wheel carrier 1 piece
